产品名称： |
FIG.690把手式铝合金蝶阀-台湾东光RING阀门 |
| |
产品型号： |
FIG.690 |
| |
|
| |
 |
| |
咨询电话：021-51879176 021-51870881 黄文涛 |
|
|
 |
|
|
|
ALUMINUM DIECAST BUTTERFLY VALVE |
|
Wafer type body,Renewable seat,Center driver disc. |
|
|
|
|
零件 PARTS |
材質 MATERIAL |
|
|
|
|
閥體 BODY |
ALUMINUM DIECAST ALLOY |
|
閥桿 STEM |
STAINLESS STEEL |
|
閥盤 DISC |
ALUMINUM FORGING ALLOY
(OPTION:STAINLESS STEEL)
|
|
擋流墊圈 SEAT |
EPDM / NBR |
|
齒輪箱 GEAR |
ALUMINUM DIECAST ALLOY | |
|

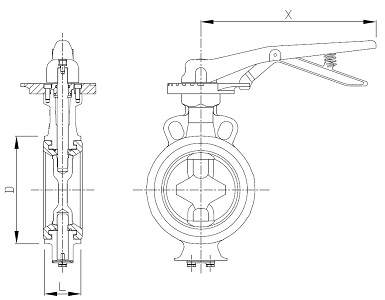

尺 寸 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
|
L |
43 |
46 |
46 |
52 |
56 |
56 |
60 |
68 |
78 |
|
D |
95.5 |
112.5 |
127 |
154 |
185 |
212.5 |
262 |
324 |
374 |
|
K |
140 |
140 |
140 |
170 |
170 |
170 |
210 |
210 |
210 |
| X |
200 |
200 |
200 |
250 |
250 |
250 |
- |
- |
- |
|
|
試驗壓力(水壓) |
|
90°C以下之靜流水 |
閥體 |
閥座 |
|
10.0 kg f/cm2 |
15 kg f/cm2 |
11 kg f/cm2 | | | FIG.690把手式铝合金蝶阀-台湾东光RING阀门资料来自上海铁王阀门有限公司提供，如需转载请注明资料来源：http://www.899sx.com/products/detail/1124.html |
|
|
|
