产品名称： |
FIG 44S00不锈钢丝口闸阀-台湾KGMC金口阀门 |
| |
产品型号： |
FIG 44S00 |
| |
|
| |
 |
| |
咨询电话：021-51879176 021-51870881 黄文涛 |
|
|
 |
|

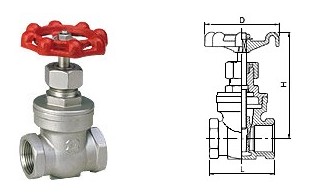

FIG 44S00不锈钢丝口闸阀-台湾KGMC金口阀门
| FIG 44S00 |
| Stainless Steel Gate Valve |
200 WOG | |
 |
|
| Parts and materials list |
| Part |
Material |
| Body |
CF 8M |
| Bonnet |
CF 8M |
| Stem |
SUS 316 |
| Disc |
CF 8M |
| Gland |
SUS 304 |
| Gland nut |
SUS 304 |
| Handwheel |
Mico Steel | |
| |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
| Size |
15 |
20 |
25 |
32 |
40 |
50 |
| L |
55 |
60 |
65 |
75 |
85 |
95 |
| H |
95 |
102 |
115 |
127 |
150 |
170 |
| D |
70 |
70 |
80 |
80 |
90 |
100 |
Working pressure marking = 200psi
Non-shock water under 180oC = 14kgf/cm2
Saturated steam = 10kgf/cm2
Hydrostatic test pressure
Shell = 20kgf/cm2
Seat = 15kgf/cm2 |
