产品名称： |
H42H锻钢立式升降止回阀-上海铁王阀门 |
| |
产品型号： |
H42H |
| |
|
| |
 |
| |
咨询电话：021-51879176 黄先生 |
|
|
 |
|
H42H锻钢立式升降止回阀-上海铁王阀门

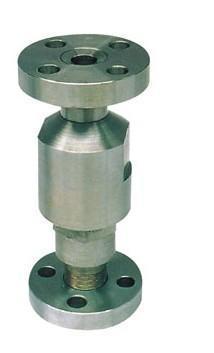

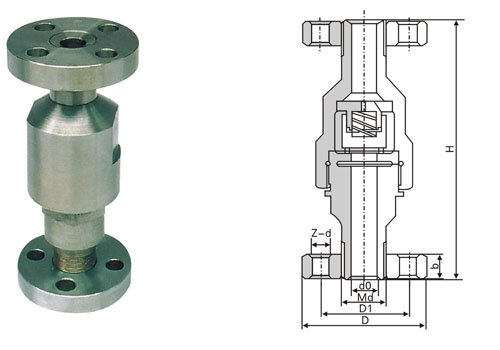

主要外形和连接尺寸 单位：mm
| 公称压力 PN |
主要外形尺寸和连接尺寸 |
|
| DN |
Do |
D |
D |
D2 |
Md |
Z-φd |
H |
b |
| 16.0MPa |
15 |
15 |
95 |
60 |
M24×2 |
3-18 |
240 |
20 |
5.5 |
| 25 |
23 |
105 |
68 |
M33×2 |
3-18 |
262 |
20 |
7.5 |
| 32 |
29 |
115 |
80 |
M42×2 |
4-18 |
285 |
22 |
10 |
| 40 |
39 |
165 |
115 |
M52×2 |
6-26 |
285 |
28 |
19.5 |
| 32.0MPa |
10 |
11 |
95 |
60 |
M24×2 |
3-18 |
234 |
20 |
5.5 |
| 15 |
17 |
105 |
68 |
M33×2 |
3-18 |
240 |
20 |
6 |
| 25 |
23 |
115 |
80 |
M42×2 |
4-18 |
262 |
22 |
8.5 |
| 32 |
29 |
135 |
95 |
M48×2 |
4-22 |
285 |
25 |
12 |
| 40 |
42 |
165 |
115 |
M64×2 |
6-26 |
316 |
32 |
21 |
|
| | H42H锻钢立式升降止回阀-上海铁王阀门资料来自上海铁王阀门有限公司提供，如需转载请注明资料来源：http://www.899sx.com/products/detail/404.html |
|
|
|
