产品名称： |
FIG 128S00二片式不锈钢丝口球阀-台湾KGMC金口阀门 |
| |
产品型号： |
FIG 128S00 |
| |
|
| |
 |
| |
咨询电话：021-51879176 021-51870881 黄文涛 |
|
|
 |
|

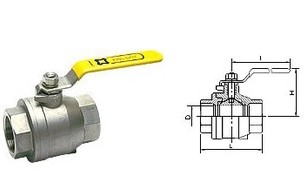

FIG 128S00二片式不锈钢丝口球阀-台湾KGMC金口阀门
| FIG 128S00 |
| Two Pieces Stainless Steel Ball Valve |
1000 WOG | |
 |
|
| Parts and materials list |
| Part |
Material |
| Body |
CF 8M |
| Bonnet |
CF 8M |
| Ball |
CF 8M |
| Stem |
SUS 316 |
| Ball seat |
PTFE |
| Handle |
SUS 304 |
| Nut |
SUS 304 |
| Gland |
SUS 304 | |
| |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
2-1/2 |
3 |
| Size |
8 |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
| L |
48 |
48 |
61 |
65 |
77 |
89 |
100 |
120 |
146 |
168 |
| D |
11.6 |
11.6 |
15 |
20 |
25 |
32 |
38.1 |
50 |
64 |
76 |
| H |
42 |
42 |
46.2 |
54.3 |
57.8 |
66.5 |
71.5 |
84.5 |
119 |
125 |
| I |
100 |
100 |
79.5 |
97.5 |
124 |
142 |
142 |
170 |
235 |
235 |
Working pressure marking = 1000 WOG
Water, Oil, Air at normal temperature = 70kgf/cm2
Saturated steam = 10kgf/cm2 | |
