| FIG F18S000 |
| Stainless Steel Ball Valve (Full Port) |
JIS-10K | |
|
|
|
| Parts and materials list |
| Part |
Material |
| Body |
CF 8, CF 8M |
| Bonnet |
CF 8, CF 8M |
| Ball |
CF 8M |
| Setem |
SUS 304 |
| Ball seat |
PTFE |
| Bolt |
SUS 304 |
| Handle |
FCD 45 |
| Gasket |
Teflon |
| Gland |
CF 8 | |
| |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
2-1/2 |
3 |
4 |
5 |
6 |

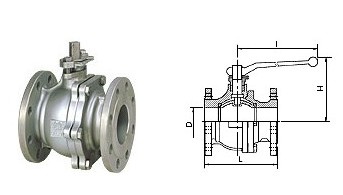

| Size |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
| L |
108 |
117 |
127 |
140 |
165 |
178 |
190 |
203 |
229 |
356 |
394 |
| H |
81 |
84 |
93 |
97 |
113 |
120 |
150 |
161 |
189 |
207 |
237 |
| I |
130 |
130 |
160 |
160 |
230 |
230 |
400 |
400 |
460 |
460 |
1040 |
| D |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
Working pressure marking = 10kg/cm2
Non-shock water under 120oC = 14kgf/cm2
Steam, Water, Oil, Air under 220oC = 12kgf/cm2
Steam, Oil, Air under 300oC = 10kgf/cm2
Hydrostatic test pressure
Shell = 20kgf/cm2
Seat = 15kgf/cm2 | | | FIG F18S000不锈钢球阀-台湾KGMC金口阀门资料来自上海铁王阀门有限公司提供，如需转载请注明资料来源：http://www.899sx.com/products/detail/1134.html |
